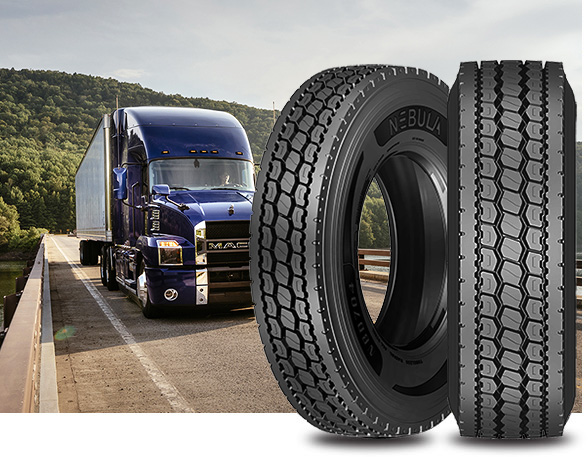

NBD704
Megaload CS-DRV
Long Original Mileage
Deep tread with innovative compound promotes long original mileage.
Uniform Wear
Closed shoulder design provides uniform wear throughout the life of the tire.
Enhanced Handling
Aggressive design with wide footprint delivers enhanced handling and brake response.
Guaranteed Retreadability
Premium casing construction provides toughness and durability for guaranteed retreadability.
| SIZE | PR/LR |
LOAD
INDEX/ SPEED SYMBOL |
STANDARD RIM |
OVERALL DIAMETER (MM/IN) |
SECTION WIDTH (MM/IN) |
SINGLE LOAD (KG/LBS) |
DUAL LOAD (KG/LBS) |
PRESSURE ((KPA/PSI) |
TREAD DEPTH (MM/32NDS) |
| 11R22.5 | 16/H | 148/145 M | 8.25 | 1065/41.9 | 279/11.0 | 3150/6940 | 2900/6395 | 850/123 | 22.2 / 28 |
| 295/75R22.5 | 16/H | 146/143 L | 9.00 | 1026/40.4 | 298/11.7 | 3000/6610 | 2725/6005 | 825/120 | 22.2 / 28 |
| 11R24.5 | 16/H | 149/146 M | 8.25 | 1116/43.9 | 279/11.0 | 3250/7160 | 3000/6610 | 825/120 | 22.2 / 28 |
| 285/75R24.5 | 16/H | 147/144 L | 8.25 | 1062/41.8 | 283/11.1 | 3075/6780 | 2800/6175 | 825/120 | 22.2 / 28 |
